Dexterous manipulation · dual-arm · sim + real

Dexterous Pick-and-Place

A camera finds the object in 6D, a GPU grasp synthesizer plans a multi-finger grasp plus a collision-free arm trajectory, and a UR arm with a 16-DoF Allegro hand picks the object and places it. One synthesis service drives both the Isaac Lab digital twin (both arms) and the real robot.

Code & setup guide Interactive hardware report Perception: FoundationPose tracker

All 10 benchmark objects on the real robot (right UR3 + Allegro), 3× speed. Each object was localized by FoundationPose, then grasped and placed with a trajectory synthesized online.

94 / 100real-robot trials succeeded (10 objects × 10, right arm)

180 / 200Isaac Lab episodes succeeded, both arms (right 88/100, left 92/100)

10objects: cubes, plush toys, carton, bottles, can (top and side grasps)

22-DoFtrajectory per pick: 6 arm + 16 finger joints

How it works

01 · perceiveFoundationPoseYOLO-World + SAM 2 + FoundationPose give the object pose in the world frame. In sim the spawn pose is used.

02 · synthesizeBODex on cuRoboHundreds of force-closure grasp seeds are optimized in parallel, with IK for pregrasp, grasp and lift. The other arm is treated as an obstacle.

03 · selectSecure, collision-freeThe chosen grasp engages the most fingers. Open-hand approaches that would hit the arm or table are rejected, and side grasps go up, out, down and in.

04 · executeClosed-loop barriersA 125 Hz joint stream. The hand closes only once the arm has arrived and opens at the place with the arm held still, behind safety gates.

Real robot

Final benchmark, 2026-09-03: right UR3 + Allegro, 10 executed trials per object, with the object re-placed by hand at a new spot every trial and operator scoring.

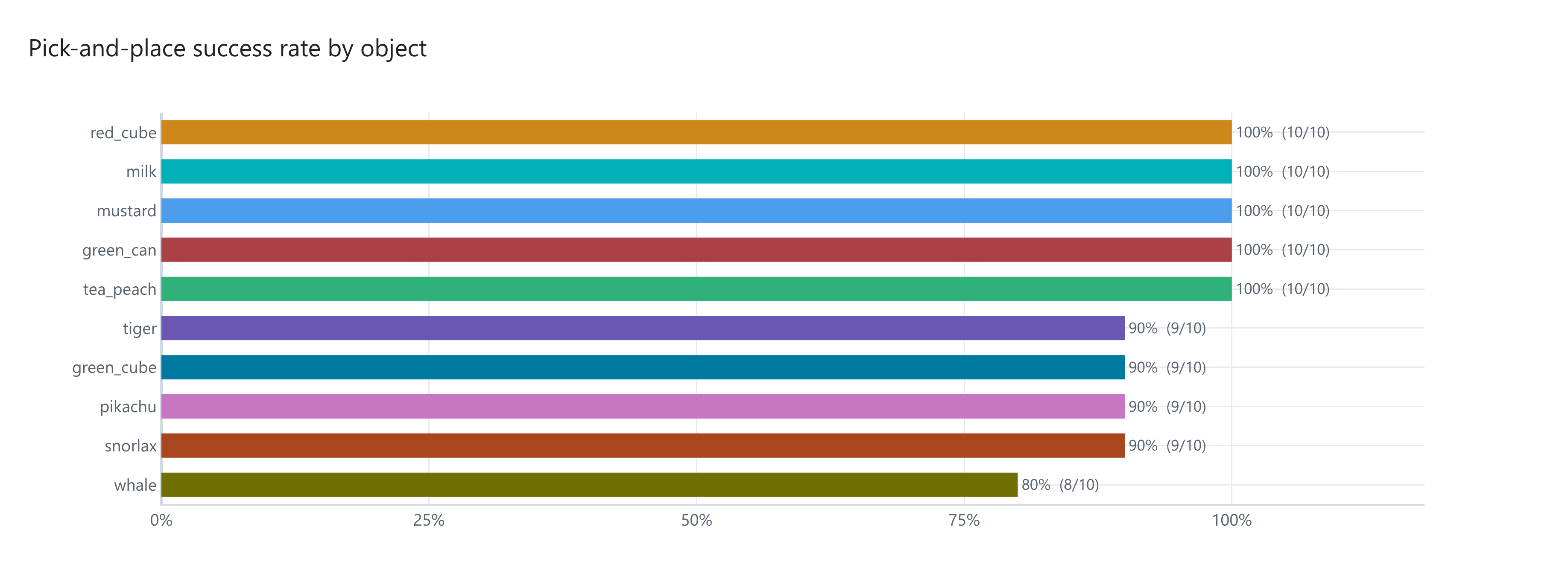

object	grasp	success	no-grasp aborts	mean grasp error	cycle time
green_cube	top	9/10	0	0.086	52.1 s
red_cube	top	10/10	0	0.088	55.1 s
pikachu (plush)	top	9/10	0	0.142	56.4 s
whale (plush)	top	8/10	1	0.172	52.4 s
snorlax (plush)	top	9/10	0	0.079	61.6 s
tiger (plush)	top	9/10	0	0.083	54.0 s
milk carton	top	10/10	0	0.079	50.0 s
mustard bottle	side	10/10	2	0.101	54.4 s
green_can	side	10/10	0	0.133	54.1 s
tea_peach bottle	side	10/10	0	0.127	55.9 s
all		94/100 (94.0%)	3	0.109	54.6 s

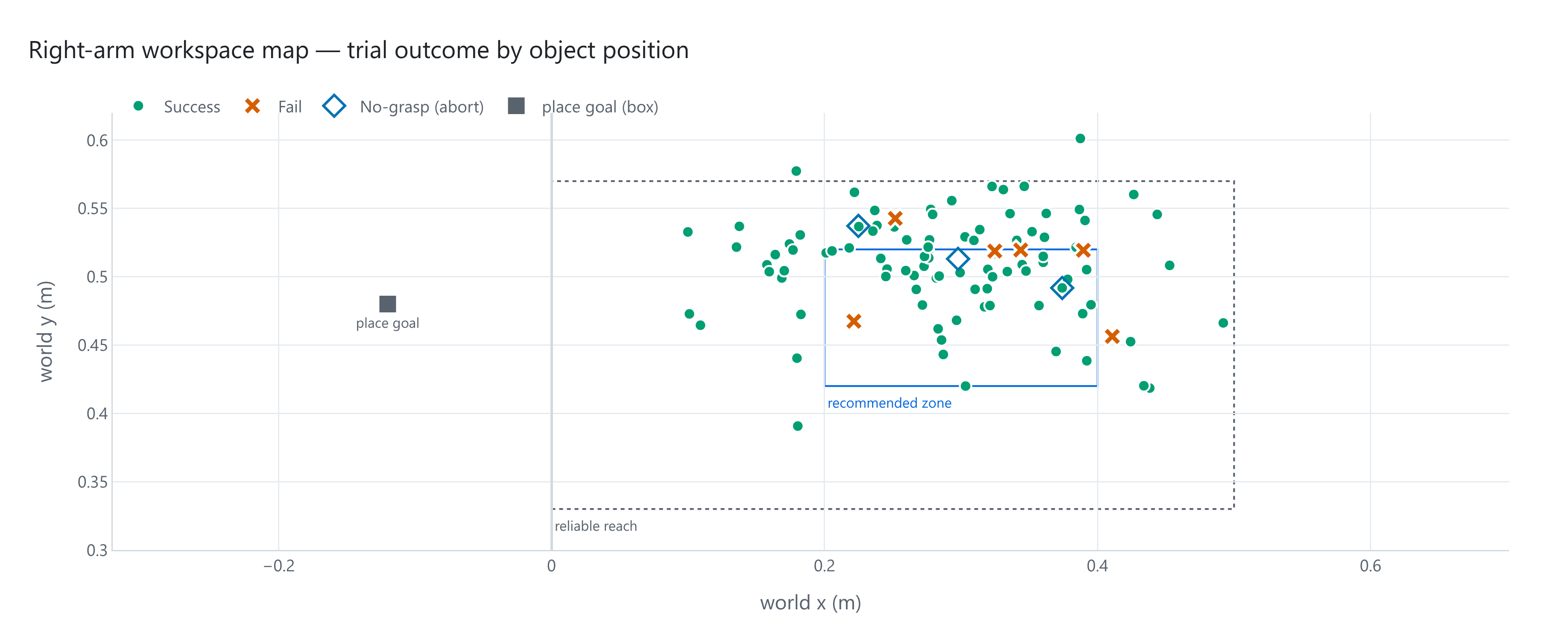

Right-arm workspace map of trial outcomes

One successful trial per object (3× speed)

topgreen cube

topred cube

toppikachu plush

topwhale plush

topsnorlax plush

toptiger plush

topmilk carton

sidemustard bottle

sidegreen can

sidetea bottle

Simulation: both arms in Isaac Lab

The same synthesis service and code path, run on the dual-arm digital twin. Every episode uses a random spawn pose and a random place target, and the idle arm stays in the scene as an obstacle. Success means the object was lifted ≥ 3 cm and ended within 15 cm (xy) / 8 cm (z) of the target. 10 episodes per object per arm (2026-10-15). The left arm (UR3e) was only tested in simulation.

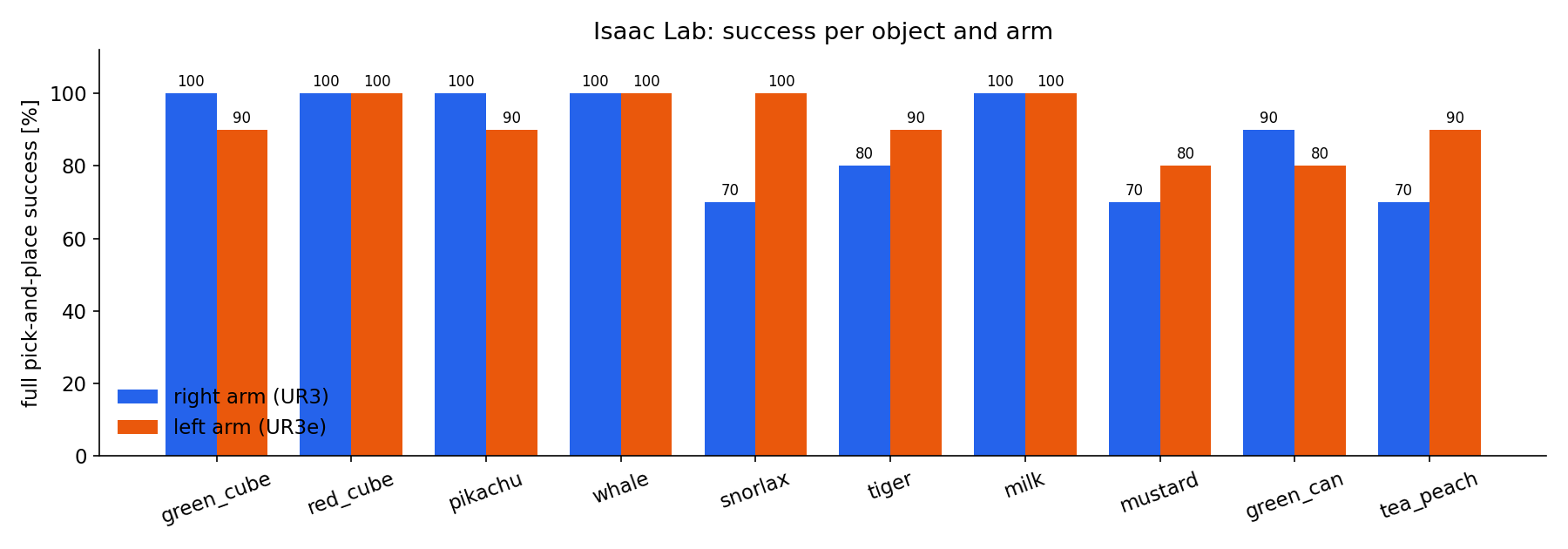

object	grasp	right arm (UR3)	left arm (UR3e)
green cube	top	10/10	9/10
red cube	top	10/10	10/10
pikachu (plush)	top	10/10	9/10
whale (plush)	top	10/10	10/10
snorlax (plush)	top	7/10	10/10
tiger (plush)	top	8/10	9/10
milk carton	top	10/10	10/10
mustard bottle	side	7/10	8/10
green can	side	9/10	8/10
tea_peach bottle	side	7/10	9/10
all		88/100 (88%)	92/100 (92%)

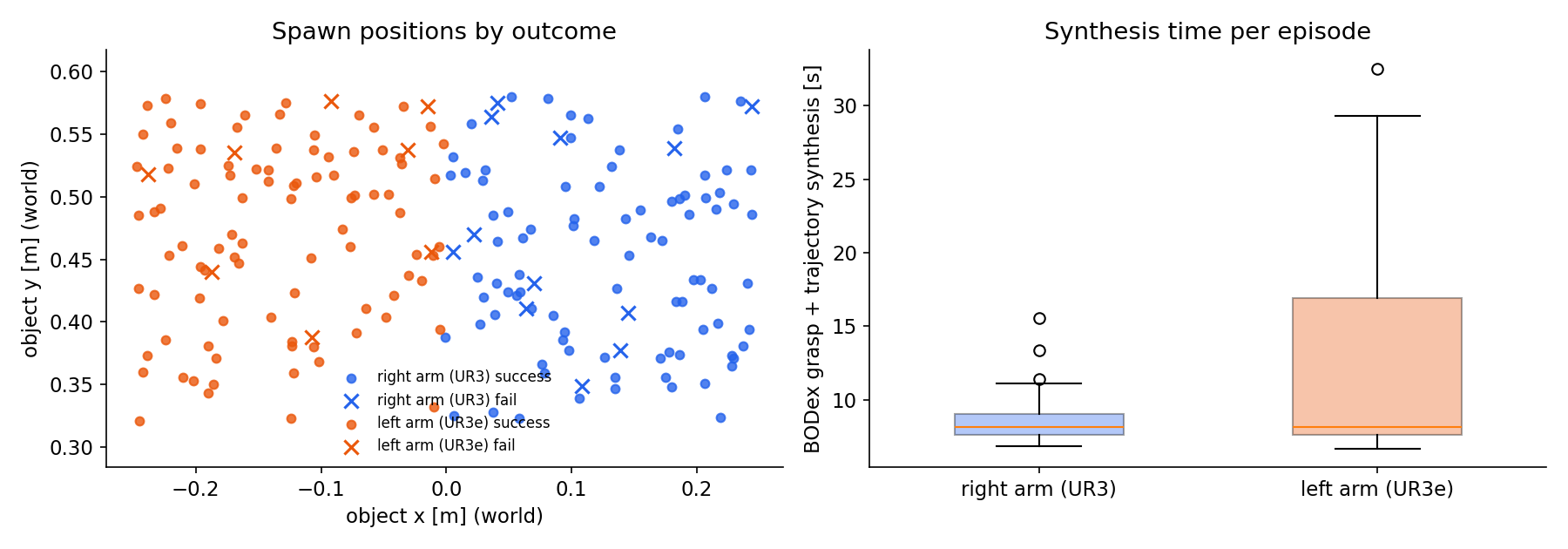

Simulation spawn positions and synthesis time

Right arm (UR3 + right Allegro), real time

topgreen cube

topred cube

toppikachu (plush)

topwhale (plush)

topsnorlax (plush)

toptiger (plush)

topmilk carton

sidemustard bottle

sidegreen can

sidetea_peach bottle

Left arm (UR3e + left Allegro), real time

topgreen cube

topred cube

toppikachu (plush)

topwhale (plush)

topsnorlax (plush)

toptiger (plush)

topmilk carton

topmustard bottle (side infeasible → top fallback)

sidegreen can

sidetea_peach bottle

Try it

git clone https://github.com/ismael-esp/dexterous-pick-and-place.git
cd dexterous-pick-and-place
bash scripts/install.sh                      # bodex env + CUDA kernels + Isaac Lab scene assets
python scripts/check_install.py --synth      # one real grasp + trajectory synthesis
ISAAC_PY=/path/to/isaaclab/python bash scripts/run_sim_benchmark.sh   # both arms in Isaac Lab

Tested on Ubuntu 22.04 with 2× RTX 5070 Ti, CUDA 12.8, Isaac Sim 5.1 + Isaac Lab 2.3.0 and ROS 2 Humble. The README covers hardware setup, adding objects, configuration and troubleshooting.
